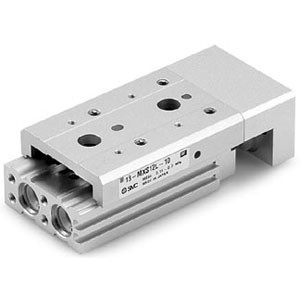

SMC 13-MXS8L-10A | Clean Room Air Slide Table MXS Series 8mm Bore 10mm Stroke L-Type A-Port Base Unit
SMC
$404.15
The SMC 13-MXS8L-10A is a clean room specification air slide table from the MXS series with 8mm bore, L-type body, and 10mm stroke in the base configuration. Part number decoded: MXS = MXS series, 8 = 8mm bore, L = L-type body, 10 = 10mm stroke, A = A-port. No stopper or switch suffix indicates this is the most basic MXS8L option.
The L-type body at 8mm bore provides the alternative mounting interface for applications where the standard body footprint does not match the equipment's mechanical layout. The 10mm stroke provides short precision travel. As the base unit, this is the most economical MXS8L entry point, with stopper and auto-switch options available as separately purchased add-ons.
The MXS8L-10A is the starting point for MXS8L configuration. For auto-switch, add M9P/M9B suffixes to get the MXS8L-10A-M9P. For longer strokes, the MXS8L-20A provides 20mm. For the standard body (non-L), the MXS8-10ASP provides 10mm with SP stopper. For 6mm bore L-type, the MXS6L series provides the most compact options. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 8mm
- Stroke:
- 10mm
- Body Type:
- L
- Port:
- A
- Auto-Switch:
- Not Included (Base Unit)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
