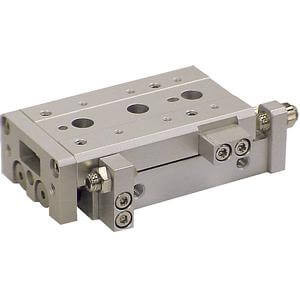

SMC 13-MXS8L-20A | Clean Room Air Slide Table MXS Series 8mm Bore 20mm Stroke L-Type A-Port Base Unit
SMC
$336.65
The SMC 13-MXS8L-20A is a clean room specification air slide table from the MXS series with 8mm bore, L-type body, and 20mm stroke. Part number decoded: MXS = MXS series, 8 = 8mm bore, L = L-type body, 20 = 20mm stroke, A = A-port. Base unit without auto-switch. The 20mm stroke doubles the travel of the MXS8L-10A.
The 20mm stroke at 8mm bore provides extended micro-slide travel for applications requiring more reach. The L-type body provides the alternative mounting interface. As a base unit, this is the most economical 20mm MXS8L option, with auto-switches available as add-ons.
The MXS8L-20A provides 20mm travel in the L-type 8mm bore platform. For the 10mm stroke, the MXS8L-10A provides a more compact option. For auto-switch versions, the MXS8L-20A-M9BWM and MXS8L-20A-M9NWM provide M9B and M9N switch options. For longer strokes, the MXS8L-40AS provides 40mm with stopper. For the standard body, the MXS8-50A provides a non-L option. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 8mm
- Stroke:
- 20mm
- Body Type:
- L
- Port:
- A
- Auto-Switch:
- Not Included (Base Unit)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
