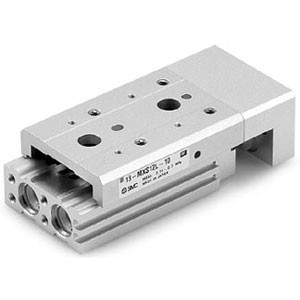

SMC 13-MXS8L-10A-M9P | Clean Room Air Slide Table MXS Series 8mm Bore 10mm Stroke L-Type A-Port M9P Auto-Switch
SMC
$328.55
The SMC 13-MXS8L-10A-M9P is a clean room specification air slide table from the MXS series with 8mm bore, L-type body, and pre-mounted M9P auto-switch. Part number decoded: MXS = MXS series, 8 = 8mm bore, L = L-type body, 10 = 10mm stroke, A = A-port, M9P = pre-mounted NPN auto-switch. This adds position sensing to the MXS8L-10A base unit.
The M9P NPN auto-switch provides PLC position feedback directly from the slide body without requiring a separate mounting bracket. The switch detects the slide table position through a magnetic piston, confirming the slide has reached its target position. At 8mm bore with 10mm stroke, this provides a sensored micro-slide for precision short-travel operations.
The MXS8L-10A-M9P provides the sensored version of the MXS8L-10A base unit. For the base unit without switch, the MXS8L-10A provides the economy option. For longer strokes with switch, the MXS8L-20A variants provide 20mm. For M9B switch output, specify M9BWM suffix. For complete pre-wired assembly, the SAPC suffix provides plug-and-play connectivity. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 8mm
- Stroke:
- 10mm
- Body Type:
- L
- Port:
- A
- Auto-Switch:
- M9P Pre-Mounted (NPN)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
