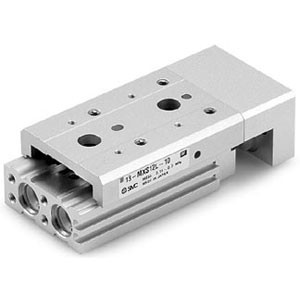

SMC 13-MXS8L-20-A93 | Clean Room Air Slide Table MXS Series 8mm Bore 20mm Stroke L-Type A93 Switch Bracket
SMC
$422.35
The SMC 13-MXS8L-20-A93 is a clean room specification air slide table from the MXS series with 8mm bore, L-type body, and A93 auto-switch bracket. Part number decoded: MXS = MXS series, 8 = 8mm bore, L = L-type body, 20 = 20mm stroke, A93 = auto-switch mounting bracket. No port suffix indicates standard port arrangement.
The A93 bracket provides a mounting point for D-series auto-switches without the switches themselves being pre-installed. This is the standard approach when the equipment builder prefers to install and position auto-switches on-site for custom switch placement, or when the switch model will be determined during commissioning. The bracket adds minimal cost while providing switch-ready capability.
The MXS8L-20-A93 provides the bracket-ready configuration. For pre-mounted switches, the MXS8L-20A-M9BWM and MXS8L-20A-M9NWM provide factory-installed options. For the base unit without bracket, the MXS8L-20A provides the most economical option. Auto-switches mount on A93 bracket (sold separately). Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 8mm
- Stroke:
- 20mm
- Body Type:
- L
- Auto-Switch:
- A93 Bracket
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
