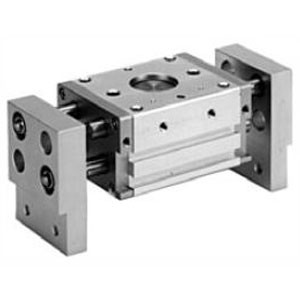

SMC 22-MHL2-10D1 | Copper/Fluorine/Silicon-Free Parallel Wide Opening Air Gripper MHL2 Series Size 10 D1 Configuration
SMC
$465.70
The SMC 22-MHL2-10D1 is a copper, fluorine, and silicon-free parallel wide opening air gripper from the MHL2 series. Part number decoded: MHL2 = MHL2 parallel wide opening gripper, 10 = size 10, D1 = specific jaw configuration (D = double acting, 1 = finger type 1). The 22- prefix designates Cu/F/Si-free construction for semiconductor front-end applications.
The MHL2 wide opening gripper provides the largest jaw travel in SMC's gripper range at a given size, enabling gripping of larger or wider workpieces than the MHZ2 angular gripper. Size 10 provides compact gripping with Cu/F/Si-free material purity. The D1 configuration specifies the particular jaw mechanism variant, affecting jaw shape and gripping characteristics.
The 22-MHL2-10D1 provides Cu/F/Si-free wide opening parallel gripping. For the D with M9N switch variant, the 22-MHL2-10D-M9N provides integrated sensing. For the standard clean room MHL2 (11-), the 11-MHL2-10D provides the base clean room option. For Cu/F/Si-free angular grippers, the 22-MHZ2 provides the angular parallel alternative. For Cu/F/Si-free rotary grippers, the 22-MDHR2 provides rotary finger actuation. RoHS compliant.
- Series:
- 22-MHL2 (Cu/F/Si-Free)
- Gripper Type:
- Parallel Wide Opening
- Action:
- Double-Acting
- Size:
- 10
- Jaw Configuration:
- D1
- Material:
- Copper Fluorine Silicon Free
- Certifications:
- RoHS
