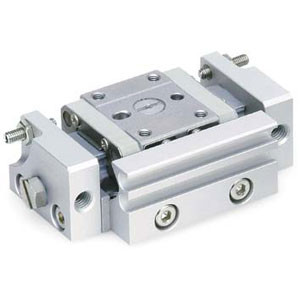

SMC 22-MXP12-15 | Copper/Fluorine/Silicon-Free Air Slide Table MXP Series 12mm Bore 15mm Stroke Basic
SMC
$357.10
The SMC 22-MXP12-15 is a copper, fluorine, and silicon-free air slide table from the MXP basic series. Part number decoded: MXP = MXP series basic air slide table, 12 = 12mm bore, 15 = 15mm stroke. The 22- prefix designates Cu/F/Si-free construction. The MXP provides the most economical slide table option in the SMC range.
The MXP basic slide table provides guided linear motion with integrated guides for anti-rotation. At 12mm bore with 15mm stroke, this ultra-compact slide provides micro-positioning with the highest material purity standard. The MXP is simpler and more compact than the MXQ and MXS series, making it ideal for applications where basic guided actuation is sufficient without the advanced features of the larger platforms.
The 22-MXP12-15 provides Cu/F/Si-free basic micro-slide actuation. For Cu/F/Si-free MXQ advanced slides, the 22-MXQ series provides recirculating ball guide options. For the standard clean room MXP (11-), the 11-MXP16-30-A93 provides the base clean room option. For the Cu/F/Si-free 16mm bore MXP, the 22-MXP16-30H provides increased travel and force. RoHS compliant.
- Series:
- 22-MXP (Cu/F/Si-Free)
- Actuator Type:
- Air Slide Table (Basic)
- Bore:
- 12mm
- Stroke:
- 15mm
- Material:
- Copper Fluorine Silicon Free
- Certifications:
- RoHS
