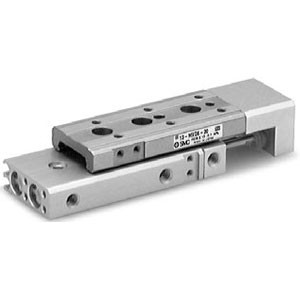

SMC 22-MXQ12-100A-M9PZ | Copper/Fluorine/Silicon-Free Air Slide Table MXQ Series 12mm Bore 100mm Stroke Auto-Switch
SMC
$762.42
The SMC 22-MXQ12-100A-M9PZ is a copper, fluorine, and silicon-free air slide table from the MXQ series with 100mm long stroke and auto-switch. Part number decoded: MXQ = MXQ series, 12 = 12mm bore, 100 = 100mm stroke, A = A-port, M9PZ = pre-mounted auto-switch (M9P NPN with Z clean room bracket). The 22- prefix designates Cu/F/Si-free construction.
The MXQ's precision recirculating ball guide mechanism maintains accuracy throughout the 100mm extended stroke. At 12mm bore, this provides long-reach micro-slide actuation with the highest material purity standard. The M9PZ switch with Z clean room bracket provides NPN position feedback optimized for the Cu/F/Si-free clean room environment.
The 22-MXQ12-100A-M9PZ provides Cu/F/Si-free long-stroke MXQ at 12mm bore. For shorter strokes at the same bore, the 22-MXQ12-100C provides the C-type option. For the standard clean room MXQ (13-), the 13-MXQ12-10C-M9BL provides the base clean room option. For Cu/F/Si-free MXS slides, the 22-MXS series provides the dual-rod guide alternative. RoHS compliant.
- Series:
- 22-MXQ (Cu/F/Si-Free)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Recirculating Ball
- Bore:
- 12mm
- Stroke:
- 100mm
- Port:
- A
- Auto-Switch:
- M9PZ Pre-Mounted (NPN)
- Material:
- Copper Fluorine Silicon Free
- Certifications:
- RoHS
