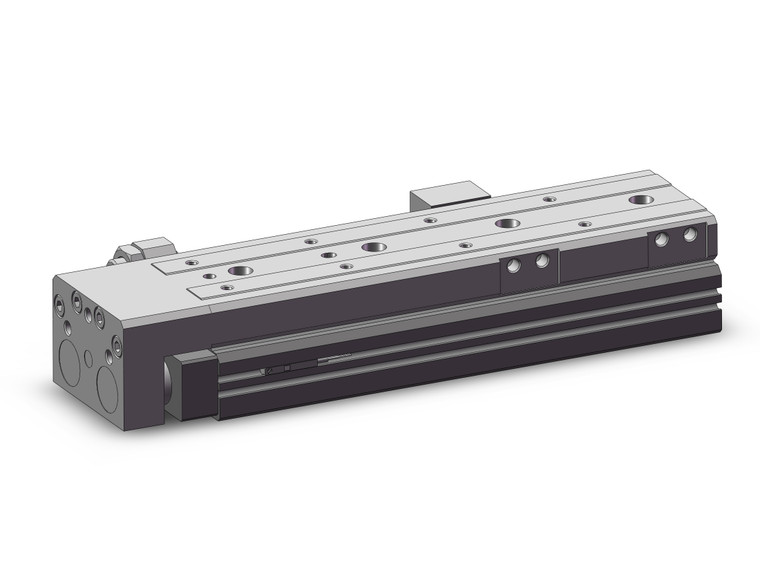

SMC 22-MXQ20TN-100CS-M9PWS 22-MXQ Series Copper Fluorine And Silicon-free + Low Particle Generation Air Slide Table
SMC
$988.90
The SMC 22-MXQ20TN-100CS-M9PWS is a premium air slide table from the 22-MXQ Series, designed to meet the demands of environments requiring copper, fluorine, and silicon-free components. This advanced air slide table is engineered to minimize particle generation, making it ideal for cleanroom applications and sensitive manufacturing processes.
Key features include the integration of the guide rail and table, which enhances the overall stability and performance of the unit. The use of a recirculating linear guide ensures high rigidity and precision, providing reliable and accurate motion control. This makes the 22-MXQ20TN-100CS-M9PWS an excellent choice for industries that prioritize cleanliness and precision, such as semiconductor manufacturing, pharmaceuticals, and biotechnology.
With its robust construction and innovative design, this air slide table offers exceptional durability and performance, ensuring long-term reliability and efficiency in your operations.
- Copper, Fluorine, Silicon-Free+Low Particle Generation:
- Vacuum Suction Type
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- NPT
- Symmetric:
- Standard Type
- Cylinder Stroke:
- Standard Stroke 100 mm
- Adjuster Option:
- Extension End Metal Stopper
- Functional Option:
- Standard Type
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
