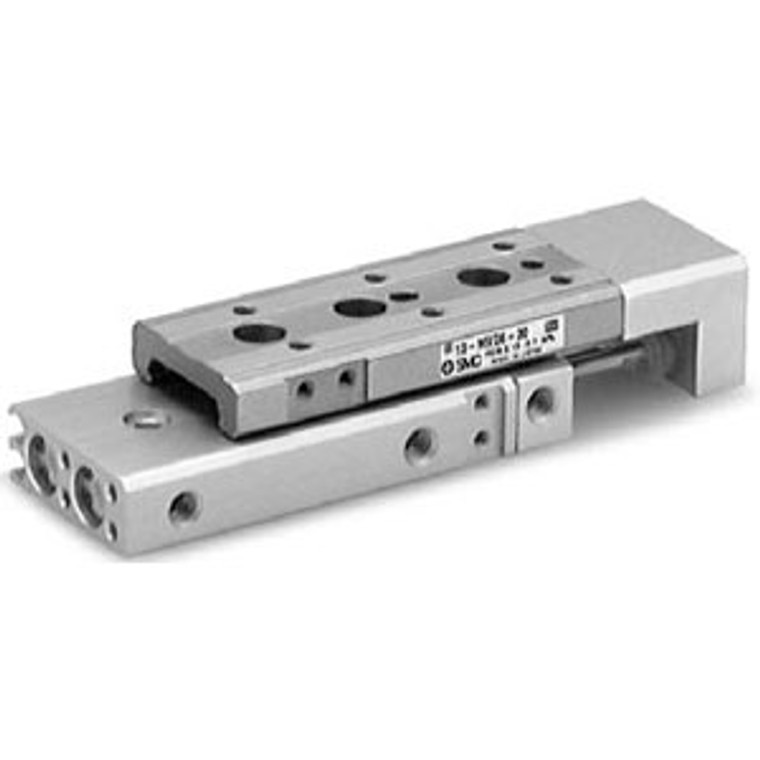

SMC 22-MXQ20-30AT | Copper/Fluorine/Silicon-Free Air Slide Table MXQ Series 20mm Bore 30mm Stroke A-Port T-Stopper
SMC
$1,031.45
The SMC 22-MXQ20-30AT is a copper, fluorine, and silicon-free air slide table from the MXQ series with 20mm bore, T-type fine-thread stopper. Part number decoded: MXQ = MXQ series, 20 = 20mm bore, 30 = 30mm stroke, A = A-port, T = T-type fine adjustable stopper. The 22- prefix designates Cu/F/Si-free construction.
The T-type stopper provides the finest stroke adjustment resolution in the MXQ platform. At 20mm bore with 30mm stroke, this provides the highest-force Cu/F/Si-free MXQ slide currently listed with fine-tuning capability. The precision recirculating ball guides maintain accuracy while the T-stopper enables micro-calibration of travel distance during commissioning.
The 22-MXQ20-30AT provides Cu/F/Si-free T-stopper MXQ at 20mm bore. For Cu/F/Si-free MXQ at 20mm without stopper, the 22-MXQ20TN-125P provides TN non-rotating extended travel. For the standard clean room MXQ (13-), the 13-MXQ20-100A provides the base clean room option. For Cu/F/Si-free MXS at 20mm bore, the 22-MXS20TN provides dual-rod guided slide. RoHS compliant.
- Series:
- 22-MXQ (Cu/F/Si-Free)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Recirculating Ball
- Bore:
- 20mm
- Stroke:
- 30mm
- Port:
- A
- Stopper:
- T-Type Fine Adjustable
- Material:
- Copper Fluorine Silicon Free
- Certifications:
- RoHS
