SMC 25A-CDA2C50-25Z | Secondary Battery Compatible Air Cylinder CA2 Series 50mm Bore 25mm Stroke Clevis Short
SMC
$290.00

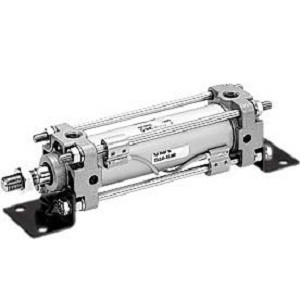

The SMC 25A-CDA2C50-25Z is a secondary battery compatible air cylinder from the CA2 series with 50mm bore and ultra-short 25mm stroke in clevis mount. Part number decoded: CDA2 = CA2 double acting, C = clevis mount, 50 = 50mm bore, 25 = 25mm stroke, Z = auto-switch groove.
The 50mm bore with only 25mm stroke creates a high-force, short-travel pivoting actuator. At 50mm bore, the CA2 generates approximately 118N at 0.6 MPa through just 25mm of travel. This configuration is ideal for short-stroke clamping, latching, and contact force applications where the cylinder must deliver high force over a minimal distance with angular mounting flexibility provided by the clevis. The clevis accommodates any alignment changes during the short stroke.
The 25A-CDA2C50-25Z provides high-force short-stroke clevis actuation. For the same bore with longer stroke, the 25A-CDA2C50-75Z provides 75mm. For auto-switch equipped version, add M9BVL or M9NL suffixes. For 40mm bore clevis options, the CDA2C40 provides reduced force. The Z groove accepts D-series auto switches. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Clevis (C)
- Bore:
- 50mm
- Stroke:
- 25mm
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
