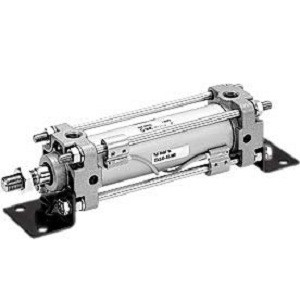

SMC 25A-CDA2C80-120Z | Secondary Battery Compatible Air Cylinder CA2 Series 80mm Bore 120mm Stroke Clevis Mount
SMC
$520.90
The SMC 25A-CDA2C80-120Z is a secondary battery compatible air cylinder from the CA2 series with the large 80mm bore and clevis mount. Part number decoded: CDA2 = CA2 double acting, C = clevis mount, 80 = 80mm bore, 120 = 120mm stroke, Z = auto-switch groove.
At 80mm bore, the CA2 generates approximately 301N at 0.6 MPa substantial force for heavy-duty battery production operations. The 120mm stroke provides moderate travel. The clevis mount enables pivoting installation for angular motion applications. This bore size handles the heaviest actuator loads in secondary battery equipment short of the 100mm bore, including heavy pressing, material stack handling, and large fixture clamping operations.
The 25A-CDA2C80-120Z provides heavy-duty clevis actuation at 80mm bore. For the 100mm bore maximum force, the 25A-CDA2C100-150Z provides the largest CA2. For D-mount at 80mm bore, the 25A-CDA2D80-200Z and CDA2D80-400Z provide double clevis. For auto-switch, add M9BVL or M9NL suffixes. The Z groove accepts D-series switches. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Clevis (C)
- Bore:
- 80mm
- Stroke:
- 120mm
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
