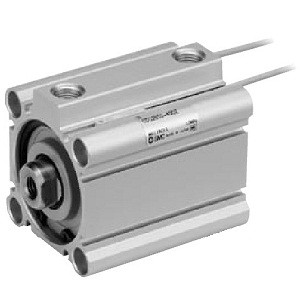

SMC 25A-CDQ2A100-15DCMZ-M9BWZ | Secondary Battery Compatible Compact Cylinder CQ2 Series 100mm Bore 15mm Stroke Ultra-Short
SMC
$524.00
The SMC 25A-CDQ2A100-15DCMZ-M9BWZ is a secondary battery compatible compact cylinder with 100mm bore and ultra-short 15mm stroke. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 100 = 100mm bore, 15 = 15mm stroke, DCM = configuration, Z = auto-switch groove, M9BWZ = pre-mounted auto-switch with Z clean room bracket.
The 100mm bore with only 15mm stroke creates an extremely high-force, ultra-short-travel compact press. At approximately 471N through just 15mm, this is one of the highest force-per-stroke-ratio actuators available. Applications include precision pressing, contact force application, and short-travel heavy clamping where maximum force is needed over minimal distance.
The 25A-CDQ2A100-15DCMZ-M9BWZ provides maximum compact force at minimal travel. For longer strokes at 100mm bore, options range from 25mm to 175mm. For the 30mm stroke with switch, the CDQ2A100-30DCMZ-M9NL provides slightly more travel. For guided compact at 100mm, the CBQ2 series provides anti-rotation. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Bore:
- 100mm
- Stroke:
- 15mm
- Options:
- DCM
- Auto-Switch:
- M9BWZ Pre-Mounted
- Travel:
- Ultra-Short
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
