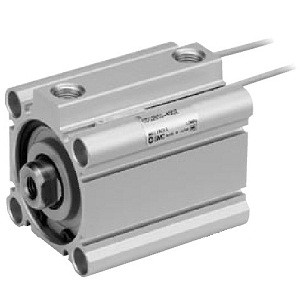

SMC 25A-CDQ2A16-20DZ-M9BL;Secondary Battery Compatible Compact Cylinder CQ2 Series 16mm Bore 20mm Stroke D-Option Auto-Switch
SMC
$208.00
The SMC 25A-CDQ2A16-20DZ-M9BL is a secondary battery compatible compact cylinder with 16mm bore, 20mm stroke, and M9BL auto-switch. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 16 = 16mm bore, 20 = 20mm stroke, D = option, Z = auto-switch groove, M9BL = pre-mounted auto-switch.
The D option (without CM cushioning) provides the standard configuration with M9BL position sensing. This is the sensored variant of the micro CQ2 at 16mm bore, providing PLC feedback for the lightest compact actuation in secondary battery equipment.
The 25A-CDQ2A16-20DZ-M9BL provides sensored micro CQ2. For the DCM cushion variant, the CDQ2A16-20DCMZ provides cushioning without switch. For the 5mm ultra-short stroke, the CDQ2A16-5DZ-M9BV provides minimal travel. For the 20mm bore CQ2 with switch, the CDQ2A20 series provides increased force. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Bore:
- 16mm
- Stroke:
- 20mm
- Option:
- D
- Auto-Switch:
- M9BL Pre-Mounted
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
