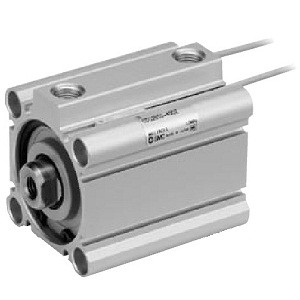

SMC 25A-CDQ2A16-20DCMZ;Secondary Battery Compatible Compact Cylinder CQ2 Series 16mm Bore 20mm Stroke Micro Compact DCM
SMC
$167.65
The SMC 25A-CDQ2A16-20DCMZ is a secondary battery compatible compact cylinder from the CQ2 series at the micro 16mm bore. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 16 = 16mm bore, 20 = 20mm stroke, DCM = cushion/modification, Z = auto-switch groove. The 16mm bore is among the smallest in the CQ2 range.
At 16mm bore, the CQ2 generates approximately 12N at 0.6 MPa in the ultra-compact square profile. The 20mm stroke provides moderate micro-travel. The DCM cushioning protects against end-of-stroke impact even at this small bore. This micro-compact cylinder handles the lightest actuation tasks in secondary battery equipment including sensor deployment, light component nudging, and micro-positioning.
The 25A-CDQ2A16-20DCMZ provides micro CQ2 at 16mm bore. For auto-switch versions, the CDQ2A16-20DZ-M9BL and CDQ2A16-5DZ-M9BV provide sensored options. For the 20mm bore CQ2, the CDQ2A20 provides increased force. For the CJ2 mini round at 16mm bore, the CDJ2 series provides an alternative form factor. The Z groove accepts auto switches. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Bore:
- 16mm
- Stroke:
- 20mm
- Options:
- DCM
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
