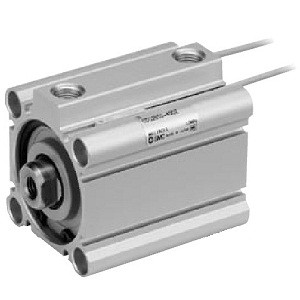

SMC 25A-CDQ2A16-5DZ-M9BV | Secondary Battery Compatible Compact Cylinder CQ2 Series 16mm Bore 5mm Stroke Ultra-Short Auto-Switch
SMC
$184.00
The SMC 25A-CDQ2A16-5DZ-M9BV is a secondary battery compatible compact cylinder with 16mm bore and ultra-short 5mm stroke. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 16 = 16mm bore, 5 = 5mm stroke, D = option, Z = auto-switch groove, M9BV = pre-mounted auto-switch (M9B with V voltage).
The 5mm stroke at 16mm bore creates an extremely compact actuator for micro-positioning tasks. The M9BV switch with V voltage specification provides position sensing optimized for specific PLC input requirements. At approximately 12N through just 5mm, this handles precision contact testing, workpiece detection, and micro-registration in secondary battery equipment.
The 25A-CDQ2A16-5DZ-M9BV provides ultra-short sensored micro CQ2. For the 20mm stroke at the same bore, the CDQ2A16-20DZ-M9BL provides extended travel. For the CJP2 pin cylinder, the CDJP2 series provides dedicated 5mm pin actuation. For the 20mm bore at 5mm, consult the CDQ2A20 series. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Bore:
- 16mm
- Stroke:
- 5mm
- Option:
- D
- Auto-Switch:
- M9BV Pre-Mounted
- Travel:
- Ultra-Short
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
