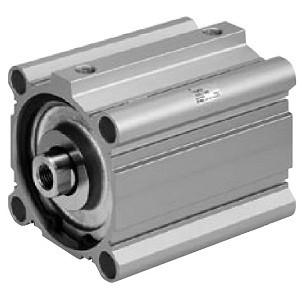

SMC 25A-CDQ2B160-20DCMZ | Secondary Battery Compatible Compact Cylinder CQ2 Series 160mm Bore 20mm Stroke B-Type DCM Maximum Standard Bore
SMC
$1,127.15
The SMC 25A-CDQ2B160-20DCMZ is a secondary battery compatible compact cylinder with 160mm bore the maximum standard bore in the CQ2 range delivering extraordinary pneumatic force. Part number decoded: CDQ2 = CQ2 double acting, B = B-type, 160 = 160mm bore, 20 = 20mm stroke, DCM = cushion with M modification, Z = auto-switch groove. Base unit without auto-switch.
At 160mm bore the CQ2 produces approximately 1,206N at 0.6 MPa through a compact 20mm stroke force that rivals small hydraulic presses while maintaining pneumatic simplicity, clean-room compatibility, and zero hydraulic fluid contamination risk. The DCM cushion absorbs the enormous piston kinetic energy. The ultra-short 20mm stroke creates a decisive, high-force compact press.
Reserved for the most demanding secondary battery applications: battery pack structural frame heavy pressing exceeding 1,000N, large-format solid-state battery hot-press lamination, heavy module stack compression for structural adhesive curing, electrode calender high-pressure pre-load application, and mega-format cell formation press platens. Choose the 160mm bore only when all smaller bore options are insufficient. For even higher force, the CDQ2B200 provides the 200mm bore option. For 140mm bore at longer stroke, the CDQ2B140-150DCMZ provides 924N through 150mm. For auto-switch, add M9NL/M9BWL suffixes. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Mount:
- B-Type
- Bore:
- 160mm
- Stroke:
- 20mm
- Options:
- DCM (Cushion + Modification)
- Force:
- 1206N at 0.6 MPa
- Auto-Switch:
- Compatible (Z Groove)
- Operating Pressure:
- 0.05-1.0 MPa
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
