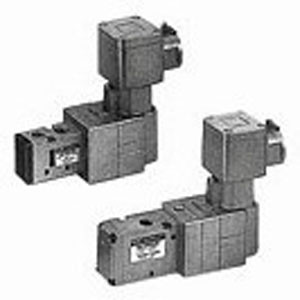

SMC 50-VPE542-3T-02A-F 50-VPE500/700 Series, Explosion Proof Solenoid Valve, Pilot Poppet Type Body Ported

SMC 50-VPE542-3T-02A-F 50-VPE500/700 Series, Explosion Proof Solenoid Valve, Pilot Poppet Type Body Ported

SMC
SKU:
50-VPE542-3T-02A-F
$178.05
Condition:
New
Current Stock:
Description

50-VPE500/700 Series, Explosion Proof Solenoid Valve, Pilot Poppet Type Body Ported

  • Exd II BT4 (TIIS Recognized);
  • Waterproof?IPX6 test passed;
  • Exhaust without pilot;(Main valve & common pilot exhaust type [50-VFE3000?);
  • Manifold Type is possible(50-VEF);
  • Can be used as selector valve, Divider valve, Vacuum valve;
  • Manifold Type No.?50-VV5FE3?50-VV5FE5
    • Additional Information
    Body Size:
    50-VPE500
    Valve Option:
    Standard/Internal Pilot Specification
    Rated Voltage:
    110 VAC 50/60Hz
    External Electrical Entry:
    Withstand Pressure
    Manual Override:
    Push-turn Locking Type
    Port Size:
    Rc 1/4
    Passage Type of Actuation:
    Normally Closed
    Bracket:
    With Bracket
    Made To Order:
    Standard
