SMC AC40-04DG-D Air Combination Filter Regulator Lubricator
SMC
$171.40

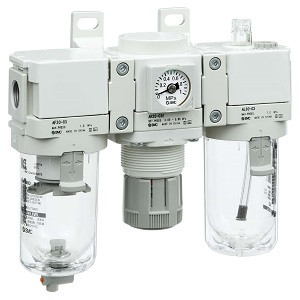

The SMC AC40-04DG-D AC20-DAC40-D Series Air Combination Air Filter + Regulator + Lubricator is engineered for precision and efficiency in pneumatic systems. This modular unit integrates an air filter, regulator, and lubricator into a single, streamlined assembly, optimizing space and performance in industrial applications.
Designed with a uniform body style, the AC40-04DG-D offers enhanced environmental resistance and superior visibility, thanks to its innovative 2-layer construction. The transparent bowl guard provides a 360° view, allowing for easy monitoring of the system's status without the need for disassembly. This feature ensures that maintenance is straightforward and efficient, with no tools required for element replacement, specifically in the AF-D model.
Engineers will appreciate the ease of integration with existing systems, facilitated by the availability of spacers (Y200-D, Y300-D, Y400-D) and spacers with brackets (Y200T-D, Y300T-D, Y400T-D). These attachments ensure compatibility and flexibility in various installation scenarios.
The SMC AC40-04DG-D is an ideal choice for professionals seeking reliable air preparation equipment that enhances system longevity and performance. Its robust design and user-friendly features make it a valuable addition to any manufacturing or engineering setup.
- Body Size:
- 40
- Pipe Thread Type:
- Rc
- Port Size:
- 1/2
- Float Type Auto Drain:
- N.O.(Normally Open) Drain Port Is Open When Pressure Is Not Applied
- Pressure Gauge:
- Round Type Pressure Gauge (With Limit Indicator)
- Digital Pressure Switch:
- Without Digital Pressure Switch
- The Pressure Relief 3 Port Valve:
- Without The Pressure Relief 3 Port Valve
- Set Pressure:
- 0.05 To 0.85 Mpa Setting
- Bowl/Lubricant Exhaust Port:
- Polycarbonate Bowl,Lubricator Without Drain Cock
- Drain Port Option a:
- With Drain Cock
- Exhaust Mechanism:
- Relieving Type
- Flow Direction:
- Flow Direction:Left To Right
- Drain Port Option b:
- Drain Cock Without Barb Fitting (For ?6 X ?4 Nylon Tube)
- Unit Representation:
- Unit On Product Label:MPa,°C,Pressure Gauge In SI Units:MPa
