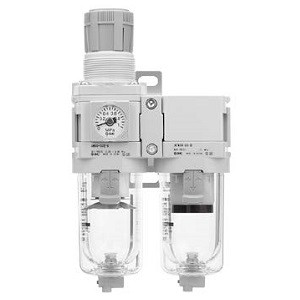

SMC AC40D-F03DE-D AC20D-D?AC40D-D Series Air Combination Filter Regulator + Mist Separator

SMC AC40D-F03DE-D AC20D-DAC40D-D Series Air Combination Filter Regulator + Mist Separator

SMC
SKU:
AC40D-F03DE-D
Availability:
Factory Stock
$184.95
Condition:
New
Current Stock:
Description

AC20D-D?AC40D-D Series Air Combination Filter Regulator + Mist Separator

  • Modular design with uniform body style;
  • Better visibility & environmental resistance;
  • 2-layer construction: The bowl is covered with a transparent bowl guard!; Better visibility: 360°;
  • No tools are required.; Easier replacement of the element (AF-D only);
  • Attachments:; Spacer: Y200-D, Y300-D, Y400-D; Spacer with bracket: Y200T-D, Y300T-D, Y400T-D
    • Additional Information
    Body Size:
    40
    Pipe Thread Type:
    G
    Port Size:
    3/8
    Float Type Auto Drain:
    N.O.(Normally Open) Drain Port Is Open When Pressure Is Not Applied
    Pressure Gauge:
    Square Embedded Type Pressure Gauge (With Limit Indicator)
    Digital Pressure Switch:
    Without Digital Pressure Switch
    The Pressure Relief 3 Port Valve:
    Without The Pressure Relief 3 Port Valve
    Set Pressure:
    0.05 To 0.85 Mpa Setting
    Bowl:
    Polycarbonate Bowl
    Drain Port Option a:
    With Drain Cock
    Exhaust Mechanism:
    Relieving Type
    Flow Direction:
    Flow Direction:Left To Right
    Drain Port Option b:
    Drain Cock Without Barb Fitting (For ?6 X ?4 Nylon Tube)
    Unit:
    Unit On Product Label:MPa,°C,Pressure Gauge In SI Units:MPa
