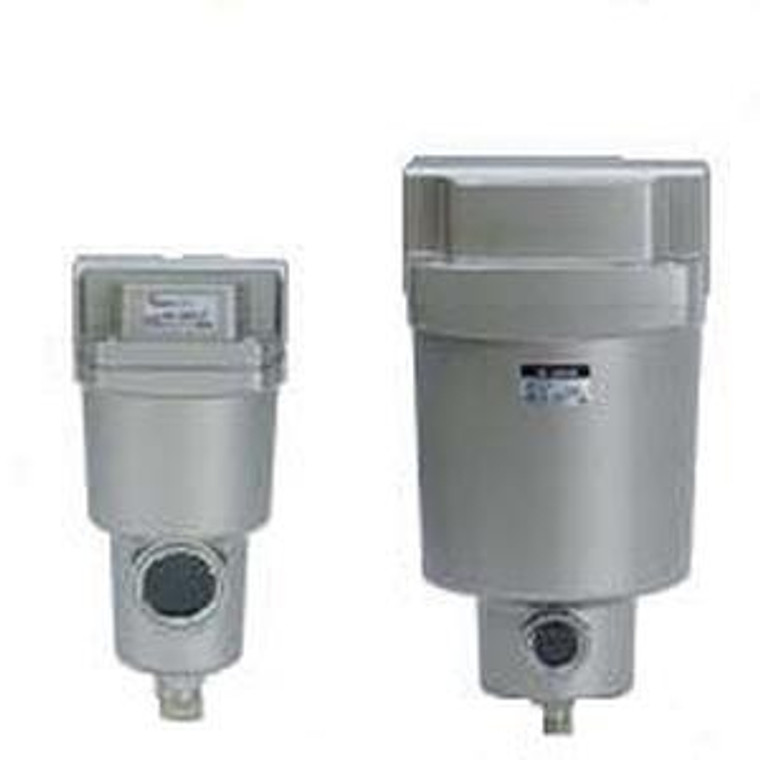

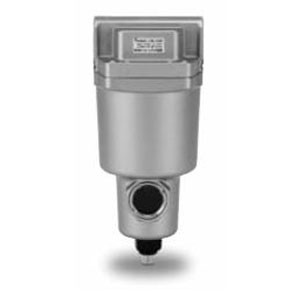

SMC AM350C-N03C Mist Separator

(No reviews yet) Write a Review
SKU:
AM350C-N03C
Condition:
New
IN-OUT Direction:
Standard
Air Pressure:
Standard
Rubber Material:
Standard
Auto Drain:
N.C. Auto Drain
Port Size:
3/8
Thread:
NPT
Body Size:
1,500l/Min, Approx. Compressor Output 10HP, 7.5kW
  • SMC AM350C-N03C Mist Separator
  • SMC AM350C-N03C Mist Separator
  • SMC AM350C-N03C Mist Separator
  • SMC AM350C-N03C Mist Separator
  • SMC AM350C-N03C Mist Separator
  • SMC AM350C-N03C Mist Separator
  • SMC - AM350C-N03C - AM350C-N03C Mist Separator - 1500 L/min Maximum Flow Rate, 145 psi Maximum Operating Pressure, 3/8 NPT Ports, Auto (Normally Closed) Drain
$124.95

Description

AM150C-550C/AM650-850, Coalescing Mist Separator

The legacy series AM mist separators range from 1/8 to 2 and feature a rugged aluminum housing. These coalescing filters are nominally rated at 0.3 micron for an initial stage of oil removal after a particulate filter.

- Particulate filtration, oil mist separation
- Modular connection capable AM150C~550C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT, or G)
- Nominal filtration rating: 0.3 3
-

Series Catalog

AutoCAD File

View AllClose
