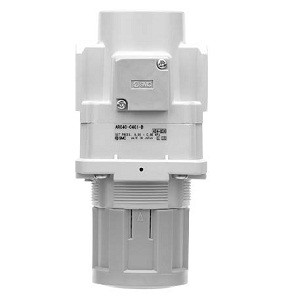

SMC ARG30-N03G3H-Z-B ARG30 Series Modular Regulator with Built-in Pressure Gauge and Backflow Function
SMC
$45.15
The SMC ARG30-N03G3H-Z-B ARG30 Series Modular Regulator is engineered for precision and efficiency in pneumatic systems. This advanced regulator features a built-in pressure gauge, allowing for real-time monitoring and adjustments to ensure optimal performance. The integrated backflow function enhances system reliability by preventing reverse flow, safeguarding your equipment from potential damage.
Designed for seamless integration, the ARG30-N03G3H-Z-B supports a maximum operating pressure of 1.0 MPa and a set pressure range of 0.05 to 0.85 MPa, making it suitable for a wide range of industrial applications. Its modular design facilitates easy installation and maintenance, reducing downtime and operational costs.
Constructed with high-quality materials, this regulator ensures durability and long service life, even in demanding environments. The compact form factor and lightweight design make it an ideal choice for space-constrained setups.
Optimize your pneumatic system's performance with the SMC ARG30-N03G3H-Z-B, a cost-effective solution priced at $45.15. Perfect for engineers and manufacturers seeking reliable and efficient pressure regulation.
- Body Size:
- 30
- With Backflow Function:
- Without Backflow Function
- Pipe Thread Type:
- NPT
- Port Size:
- 3/8
- Bracket:
- Without Bracket
- Mounting Angle of Pressure Gauge:
- 180°
- Mounting Option:
- With Set Nut (For Panel Mounting)
- Set Pressure:
- 0.05 To 0.85 Mpa Setting
- Exhaust Mechanism:
- Relieving Type
- Knob:
- Downward
- Unit Representation:
- Name Plate: psi, Pressure Gauge: Both MPa And psi
- Made To Order:
- Standard
