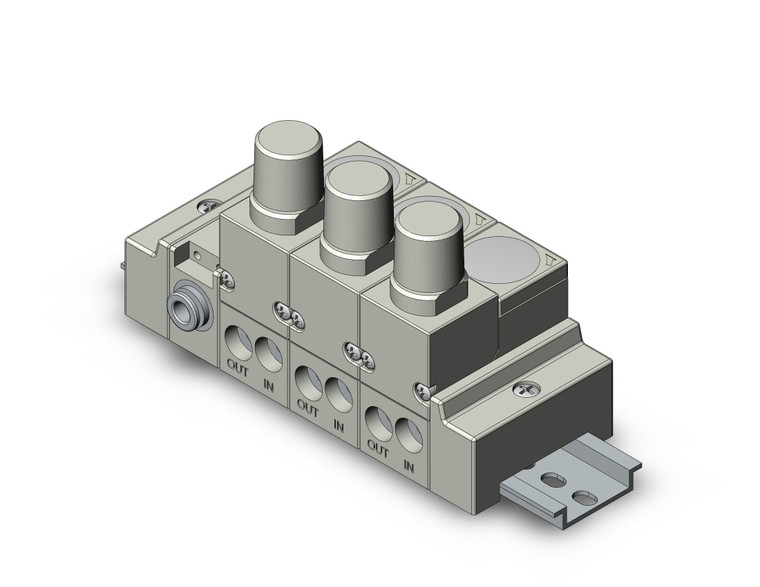

SMC ARM11AB3-357-JZ Compact Manifold Regulator

SMC ARM11AB3-357-JZ ARM11A Series Compact Manifold Regulator, Manifold Type, Common Supply Type

SMC
SKU:
ARM11AB3-357-JZ
Availability:
Factory stock
$128.50
Condition:
New
Current Stock:
Description

ARM11A Series Compact Manifold Regulator, Manifold Type, Common Supply Type

  • Free selection in response to positioning conditions;?Knob positions: Top/Front/Bottom;?Piping directions: Up/Down;?One-touch fitting varieties: Straight/Elbow;
  • Varieties and sizes of One-touch fittings can be changed;
  • Standard model equipped with backflow function;
  • Compatible with digital pressure switch
    • Additional Information
    Handle Position:
    Front
    IN/OUT Piping Position:
    IN Side:Bottom OUT Side:Top
    Regulator Block Stations:
    3 Stations
    IN/OUT Fitting Type:
    IN Side?Straight ?1/4 OUT Side?Straight ?5/32
    Accessory:
    With Pressure Display,Common Supply Block,L Side(Left)
    Semi-standard Specifications:
    None
    Unit Representation:
    Display Unit For Product Name Plate and Pressure Gauge: psi
    Digital Presure Switch Output Specifications:
    None
