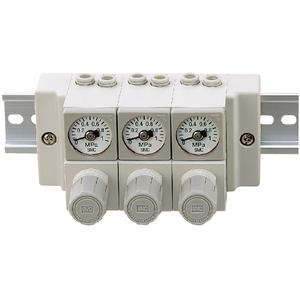

SMC ARM11BB4-408-A7ZA-N Compact Manifold Regulator

SMC ARM11BB4-408-A7ZA-N ARM11B Series Compact Manifold Regulator, For Manifold, Individual Supply Type

SMC
SKU:
ARM11BB4-408-A7ZA-N
Availability:
Contact us to confirm availability and lead times.
$598.40
Condition:
New
Current Stock:
Description
The SMC ARM11BB4-408-A7ZA-N ARM11B Series Compact Manifold Regulator is designed for manifold applications with an individual supply type. This versatile regulator offers free selection in response to positioning conditions, allowing you to choose from knob positions at the top, front, or bottom, and piping directions that can be adjusted up or down. It features a variety of one-touch fitting options, including straight and elbow configurations, which can be easily changed to suit your needs. The standard model is equipped with a backflow function and is compatible with digital pressure switches, ensuring precise and reliable performance in your system.
Additional Information
Handle Position:
Front
IN/OUT Piping Position:
IN Side:Top OUT Side:Bottom
Regulator Block Stations:
4 Stations
IN/OUT Fitting Type:
IN Side Straight 6 OUT Side Straight 6
Accessory:
With Pressure Display
Semi-standard Specifications:
0.35 MPa setting Non-relieving Type Oil-free
Unit Representation:
Digital Pressure Switch: With Unit Switching (MPa is Initially set.)
Digital Presure Switch Output Specifications:
NPN open collector
