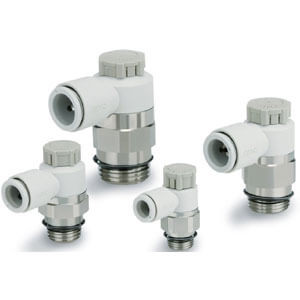

SMC AS1301FG-M5-06A AS-FG Series Speed Controller with One-Touch Fitting, Stainless Steel Elbow Type, Universal Body, M5 x 0.8 Port, 6 mm Tube Size
SMC
$13.15
The SMC AS1301FG-M5-06A AS-FG Series Speed Controller is engineered for precision and reliability, making it an essential component for pneumatic systems in demanding industrial environments. This model features a robust stainless steel construction, ensuring durability and resistance to corrosion, ideal for harsh conditions. The elbow type/universal type design offers versatile installation options, accommodating a wide range of applications.
Key technical enhancements include the addition of a face seal (R, NPT) for improved sealing performance, and a push-lock type mechanism that simplifies the locking process. The larger handle design facilitates easier operation, while the improved tube insertion and removal capabilities significantly reduce the required forceup to 30% reduction in insertion force and 20% reduction in removal forcewithout compromising the tube pulling out strength.
The AS1301FG-M5-06A also supports 360° swivel piping, providing flexibility in system design and installation. This feature is particularly beneficial in complex setups where space and orientation are critical factors. Designed with engineers and manufacturing professionals in mind, this speed controller ensures optimal performance and efficiency in pneumatic control systems.
- Body Size:
- M5X0.8
- Type:
- Universal
- Control Type:
- Meter-out
- Stainless Steel Type:
- Stainless Steel 303
- Port Size:
- M5X0.8
- Applicable Tubing O.D.:
- ?6 mm
- Manual Override:
- Push-lock Type
- Made To Order:
- Standard
