SMC AS2211FG-02-08SA flow control speed controller

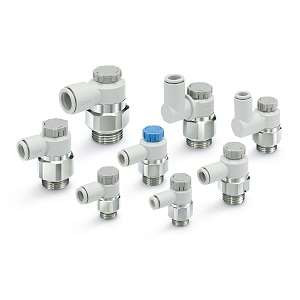

SMC AS2211FG-02-08SA AS-FG Series Speed Controller With One-touch Fitting Stainless Steel Type Elbow Type/Universal Type Body Size 2·3·4

SMC
SKU:
AS2211FG-02-08SA
Availability:
Contact us to confirm availability and lead times.
$21.55
Condition:
New
Current Stock:
Description

AS-FG Series Speed Controller With One-touch Fitting Stainless Steel Type Elbow Type/Universal Type Body Size 2·3·4

  • Add face seal(R,NPT)[New];
  • Easy to lock with push-lock type;
  • Larger handle;
  • Improved tube insertion/removal; Insertion force: Max. 30% (8 N) reduction; Removal force: Max. 20% (5 N) reduction ; Tube pulling out strength is ensured to be equivalent to existing model.;
  • 360°swivel piping possible (universal type)
    • Additional Information
    Body Size:
    1/8,1/4
    Type:
    Elbow
    Control Type:
    Meter-in
    Stainless Steel Type:
    Stainless Steel 303
    Thread Type:
    R
    Port Size:
    1/4
    Applicable Tubing O.D.:
    8 mm
    Seal:
    With Sealant
    Manual Override:
    Push-lock Type
    Made To Order:
    Standard
