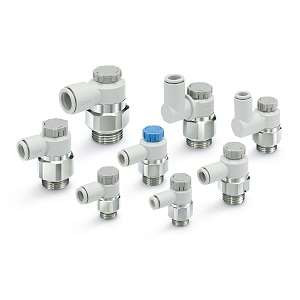

SMC AS3201FG-G02-08A flow control speed controller

SMC AS3201FG-G02-08A AS-FG Series Speed Controller With One-touch Fitting Stainless Steel Type Elbow Type/Universal Type Body Size 2·3·4

SMC
SKU:
AS3201FG-G02-08A
$23.90
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

AS-FG Series Speed Controller With One-touch Fitting Stainless Steel Type Elbow Type/Universal Type Body Size 2·3·4

  • Add face seal(R,NPT)[New];
  • Easy to lock with push-lock type;
  • Larger handle;
  • Improved tube insertion/removal; Insertion force: Max. 30% (8 N) reduction; Removal force: Max. 20% (5 N) reduction ; Tube pulling out strength is ensured to be equivalent to existing model.;
  • 360°swivel piping possible (universal type)
    • Additional Information
    Body Size:
    3/8
    Type:
    Elbow
    Control Type:
    Meter-out
    Stainless Steel Type:
    Stainless Steel 303
    Thread Type:
    G
    Port Size:
    1/4
    Applicable Tubing O.D.:
    8 mm
    Seal:
    Without Sealant
    Manual Override:
    Push-lock Type
    Made To Order:
    Standard
