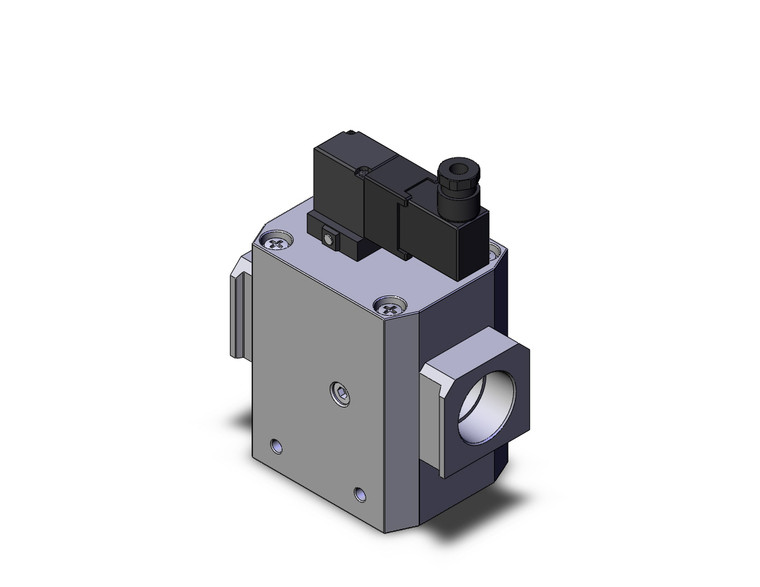

SMC AV5000-N10-5YZ AV2000·3000·4000·5000 Series Soft Start-Up Valve
SMC
$213.20
The SMC AV5000-N10-5YZ is a part of the AV2000·3000·4000·5000 Series Soft Start-Up Valves, designed to enhance the efficiency and safety of pneumatic systems. This innovative valve allows for a controlled and gradual introduction of air into the system, minimizing the risk of damage from sudden pressure surges. It features a unique mechanism that supplies air at a low speed, ensuring a smooth start-up process, while also allowing for high-speed exhaust to maintain optimal performance. Ideal for applications requiring precise air flow control, this valve is a reliable choice for maintaining system integrity and prolonging equipment life.
- Body Size:
- 3/4,1
- Thread Type:
- NPT
- Bore Size:
- 1 (AV5000 Only)
- Option:
- None
- Coil Rated Voltage:
- 24 VDC
- Electrical Entry:
- Type Y,DIN Terminal (With Connector)
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor (Not Possible With Grommet Type)
- Manual Override:
- Push-Turn Locking Type (Flush)
- Flow Direction:
- Left To Right
- CE-compliant:
- -
