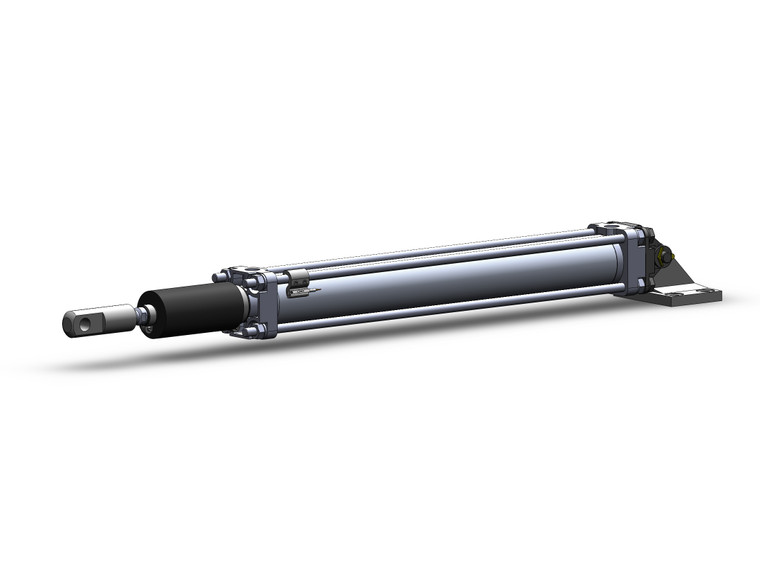

SMC CDA2D40-350KNZ-NV-M9PWMDPCS tie rod cylinder air cylinder, tie rod

SMC CDA2D40-350KNZ-NV-M9PWMDPCS CA2-Z Series Air Cylinder

SMC
SKU:
CDA2D40-350KNZ-NV-M9PWMDPCS
$354.85
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CA2-Z Series Air Cylinder

  • Weight reduced by up to 15% lighter;
  • Easy air cushion control;
  • Various switches such as compact auto switches and magnetic field resistant auto switches can be mounted;
  • Part numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately);
  • With auto switch (Series CDA2: CDA2, CDA2W)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Double Clevis Style
    Tube Material:
    Aluminum Tube
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 350 mm
    Suffix For Cylinder:
    Rod Boot:Heat Resistant Tarpaulin,Rubber Bumper
    Stroke Adjustment Symbol:
    None
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Suffix For Cylinder2:
    None Rod Boot,Air Cushion
    Pivot Bracket:
    Pivot Bracket
    Rod End Bracket:
    Single Knuckle Joint
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
