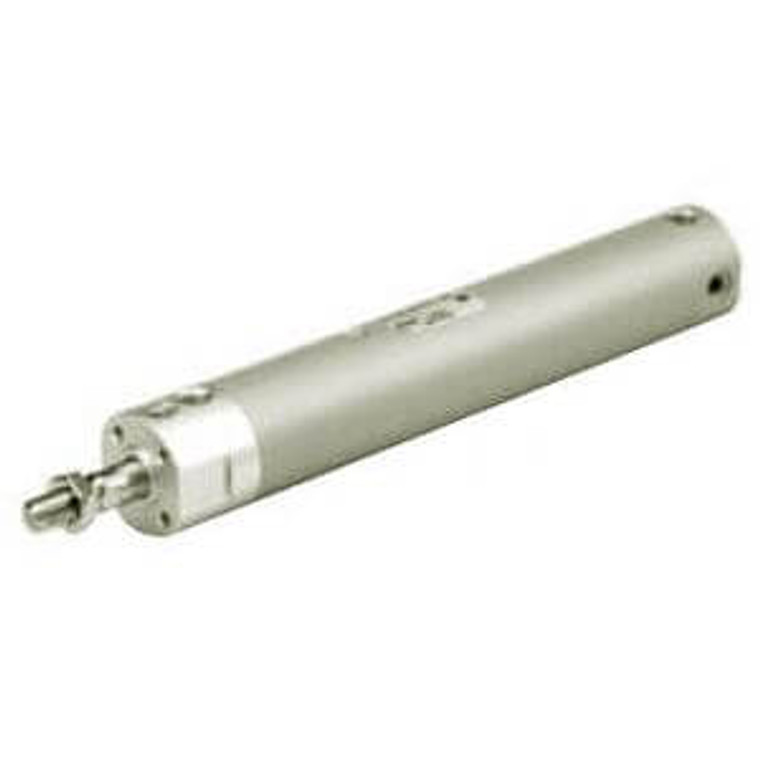

SMC CDG1BN20-350Z-M9PMAPC CG1-Z Series Air Cylinder
SMC
$188.05
The SMC CDG1BN20-350Z-M9PMAPC CG1-Z Series Air Cylinder is engineered for precision and reliability in demanding industrial applications. This pneumatic actuator features a female rod end as standard, facilitating seamless integration into existing systems. The design allows for easy fine adjustment of the auto switch position, enhancing operational efficiency and reducing setup time.
Engineered without a trunnion mounting female thread, this air cylinder offers a streamlined basic type variation, optimizing space and simplifying installation. For added convenience, part numbers with rod end bracket and/or pivot bracket are available, eliminating the need to order these components separately and ensuring a cohesive assembly.
The inclusion of an auto switch (Series CDG1-Z: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R) provides enhanced control and automation capabilities, making it ideal for applications requiring precise motion control. This air cylinder is a robust solution for engineers and manufacturing professionals seeking reliability and performance in their pneumatic systems.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic
- Type:
- Rubber Cushion
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rubber cushion:Rc
- Rod And Thread:
- Male Rod End
- Stroke Adjustment Symbol:
- None
- Suffix For Cylinder:
- Without Rod Boot
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Rod End Male Thread, Without Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
