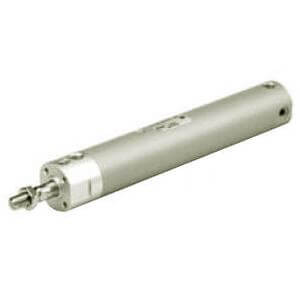

SMC CDG1DN20-25Z-NW CG1-Z Series Air Cylinder
SMC
$84.50
The SMC CDG1DN20-25Z-NW CG1-Z Series Air Cylinder is engineered for precision and reliability in demanding industrial applications. This pneumatic actuator features a female rod end as standard, facilitating seamless integration into existing systems. The design allows for easy fine adjustment of the auto switch position, enhancing operational flexibility and control.
Engineered without a trunnion mounting female thread, this air cylinder offers a streamlined basic type variation, reducing complexity and potential points of failure. For added convenience, part numbers with rod end bracket and/or pivot bracket are available, eliminating the need to order these components separately and ensuring a perfect fit for the applicable cylinder.
The inclusion of an auto switch (Series CDG1-Z: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R) enhances automation capabilities, making it ideal for high-precision tasks in manufacturing environments. This air cylinder is a robust solution for engineers seeking to optimize pneumatic systems with reliable, high-performance components.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Clevis Style
- Type:
- Rubber Cushion
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rubber cushion:Rc
- Cylinder Stroke:
- Standard Stroke 25 mm
- Rod And Thread:
- Male Rod End
- Stroke Adjustment Symbol:
- None
- Suffix For Cylinder:
- Without Rod Boot
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Rod End Male Thread, Without Rod Boot
- Pivot Bracket:
- Pivot Bracket
- Rod End Bracket:
- Double Knuckle Joint
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
