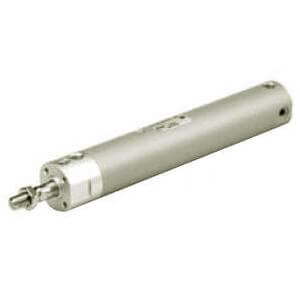

SMC CDG1DN32TN-100Z CG1-Z Series Air Cylinder
SMC
$62.30
The SMC CDG1DN32TN-100Z CG1-Z Series Air Cylinder is engineered for precision and reliability, making it an essential component for advanced pneumatic systems. This air cylinder features a female rod end as standard, facilitating seamless integration into existing setups. The design allows for easy fine adjustment of the auto switch position, ensuring optimal performance and adaptability in dynamic environments.
Engineered without a trunnion mounting female thread, this model enhances the basic type variation, offering streamlined installation and maintenance. The inclusion of part numbers with rod end bracket and/or pivot bracket eliminates the need for separate bracket orders, simplifying procurement and assembly processes.
The CG1-Z Series is equipped with an auto switch, compatible with Series CDG1-Z models such as CDG1, CDG1W, CDG1K, CDG1KW, and CDG1R, providing versatile application across various industrial settings. This air cylinder is ideal for engineers and manufacturing professionals seeking a robust, efficient, and adaptable solution for their pneumatic system needs.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Clevis Style
- Type:
- Rubber Cushion
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 100 mm
- Rod And Thread:
- Male Rod End
- Stroke Adjustment Symbol:
- None
- Suffix For Cylinder:
- Without Rod Boot
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Rod End Male Thread, Without Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
