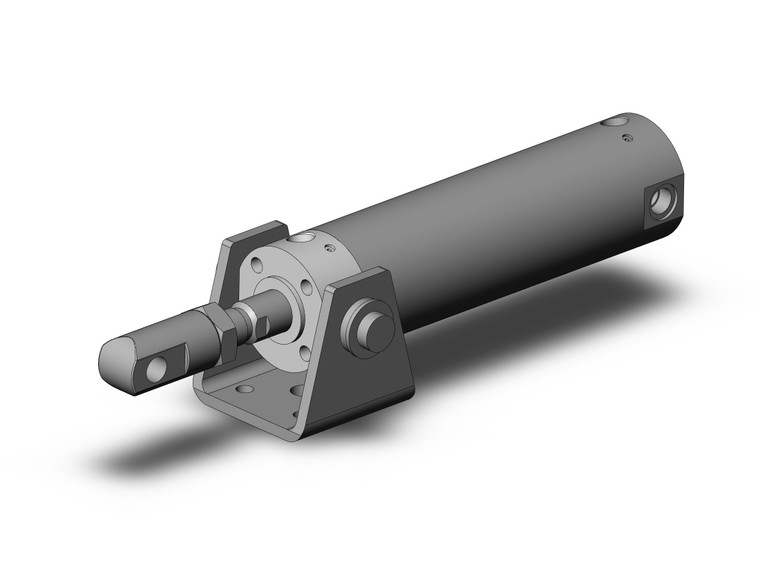

SMC CDG1UA40-100Z-NV Cg1, Air Cylinder

SMC CDG1UA40-100Z-NV CG1-Z Series Air Cylinder

SMC
SKU:
CDG1UA40-100Z-NV
Availability:
Contact us to confirm availability and lead times.
$147.50
Condition:
New
Current Stock:
Description

CG1-Z Series Air Cylinder

  • Female rod end available as standard;
  • Easy fine adjustment of auto switch position;
  • No trunnion mounting female thread added to basic type variation;
  • Part numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately);
  • With auto switch (Series CDG1-Z: CDG1?CDG1W?CDG1K?CDG1KW?CDG1R)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Side Trunnion Style
    Type:
    Air Cushion
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rubber cushion:Rc
    Cylinder Stroke:
    Standard Stroke 100 mm
    Rod And Thread:
    Male Rod End
    Stroke Adjustment Symbol:
    None
    Suffix For Cylinder:
    Without Rod Boot
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Suffix For Cylinder2:
    Rod End Male Thread, Without Rod Boot
    Pivot Bracket:
    Pivot Bracket
    Rod End Bracket:
    Single Knuckle Joint
    Auto Switch:
    Without Auto Switch
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
