SMC CDJ2D16-15TZ-NW-M9PSAPC-B Cylinder, Air

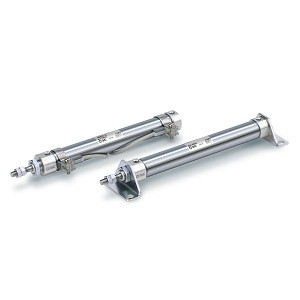

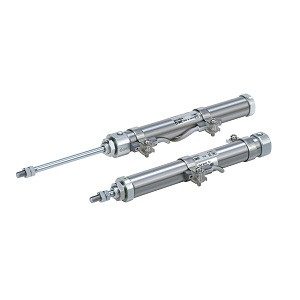

SMC CDJ2D16-15TZ-NW-M9PSAPC-B CJ2-Z Series Air Cylinder

SMC
SKU:
CDJ2D16-15TZ-NW-M9PSAPC-B
$166.80
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CJ2-Z Series Air Cylinder

  • Double foot, head flange are added to the mounting types;
  • Easy fine adjustment of auto switch position;
  • The auto switch mounting type, band or rail can be selected with the model number;
  • Part numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDJ2-Z: CDJ2?CDJ2W?CDJ2K?CDJ2Z?CDJ2ZW?CDJ2RA?CDJ2RK)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Double Clevis Style
    Bore Size:
    Bore Size 16 mm
    Cylinder Stroke:
    Standard Stroke 15 mm
    Action:
    Single Acting,Spring Extend
    Head Cover Port Location:
    Perpendicular To Axis
    Pivot Bracket:
    Pivot Bracket Is Shipped Together With The Product,But Not Assembled
    Rod End Bracket:
    Double Knuckle Joint
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Auto Switch Mounting Style:
    Band Mounting Style
    Made To Order:
    Standard
