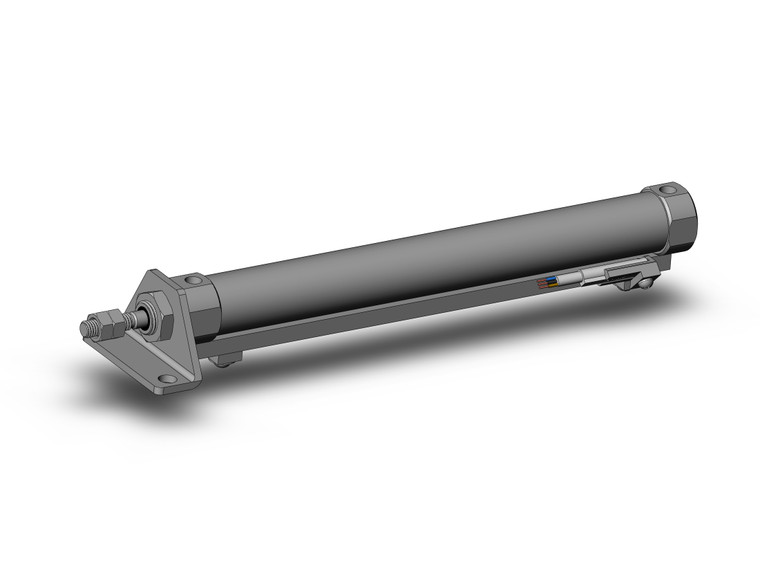

SMC CDJ2XL16-125Z-M9PL-A Cyl, Microspeed, Dbl Act, Sgl Rod

SMC CDJ2XL16-125Z-M9PL-A CJ2X-Z Series Low Speed Cylinder Double Acting,Single Rod

SMC
SKU:
CDJ2XL16-125Z-M9PL-A
$160.90
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

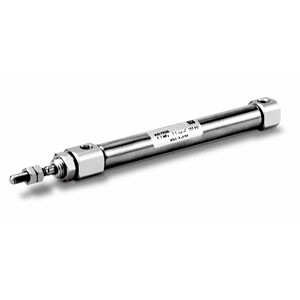

CJ2X-Z Series Low Speed Cylinder Double Acting,Single Rod

  • Reducing adhesion/quick extension;
  • Smooth operation possible even at 0.5 mm/s (1 mm/s for ?16 or smaller);
  • Minimum operating pressure is reduced in half. (Compared to previous version);
  • Improved functions (New structure equivalent to the standard models);
  • Interchangeable with the standard models;
  • With auto switch(Series CDJ2X-Z?CDJ2X-Z, Series CDM2X-Z?CDM2X, ;?Series CDQSX?CDQSX, Series CDQ2X?CDQ2X, Series CDUX?CDUX)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    One Side Foot Style
    Bore Size:
    Bore Size 16 mm
    Cylinder Stroke:
    Standard Stroke 125 mm
    Head Cover Port Location:
    Perpendicular To Axis
    Pivot Bracket:
    None
    Rod End Bracket:
    None
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Auto Switch Mounting Style:
    Rail Mounting Style
