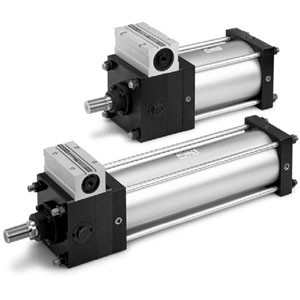

SMC CDLSF160-250-A93L-DA93 CLS Series Cylinder With Lock Double Acting,Single Rod

SMC CDLSF160-250-A93L-DA93 CLS Series Cylinder With Lock Double Acting,Single Rod

SMC
SKU:
CDLSF160-250-A93L-DA93
Availability:
Contact us to confirm availability and lead times.
$2,226.85
Condition:
New
Current Stock:
Description

CLS Series Cylinder With Lock Double Acting,Single Rod

  • Locking cylinder ideal for intermediate stops, emergency stops and drop prevention. (Bi-directional lock);
  • With auto switch (Series CDLS: CDLS)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Side Flange Style
    Tube Material:
    Aluminum Tube(Steel Tube When Without Magnet,Bore Size 125,140,1001st Or More,Bore Size 160,1201st Or More,Bore Size 180,200,250)
    Bore Size:
    Bore Size 160 mm
    Port Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 250 mm
    Suffix For Cylinder:
    Without Rod Boot,With Cushion On Both Sides
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
    Number Of Auto Switches:
    2 pcs. Or None
    Lock Unit Built-In Magnet:
    Built-in Magnet
    Lock Unit Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V,AC100V
    Made To Order:
    Standard
    Class 2 Pressure Vessel:
    Applicable
