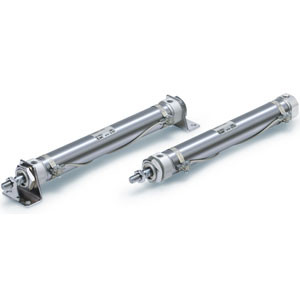

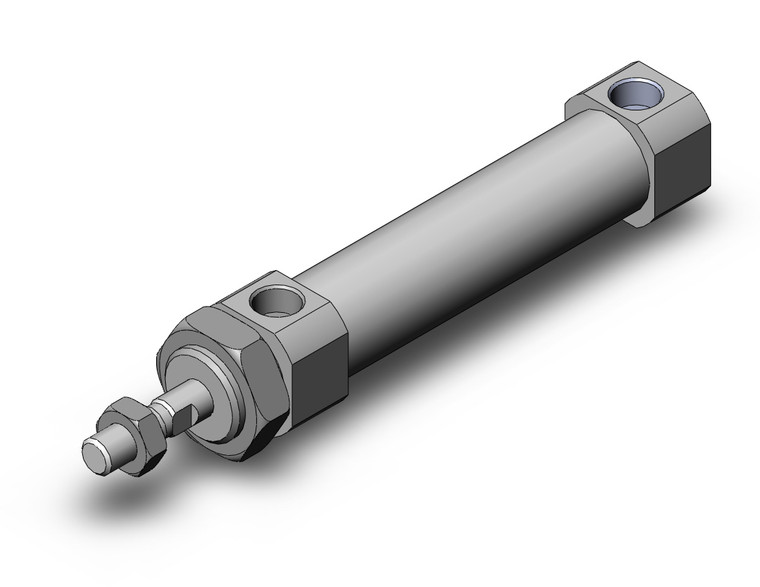

The SMC CDM2BZ20-50Z CM2-Z Series Air Cylinder is engineered for precision and reliability, making it an ideal choice for demanding industrial applications. This pneumatic actuator features a female rod end as standard, facilitating seamless integration into existing systems. The design allows for easy fine adjustment of the auto switch position, ensuring optimal performance and adaptability in dynamic environments.
Engineered with versatility in mind, the CM2-Z Series offers single clevis and trunnion pivot brackets, enhancing its mounting flexibility. For added convenience, part numbers with rod end bracket and/or pivot bracket are available, eliminating the need to order these components separately for the applicable cylinder.
The inclusion of an auto switch (Series CDM2-Z: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK) enhances operational efficiency by providing precise control and feedback. This feature is particularly beneficial in automated systems where precision and repeatability are critical.
With its robust construction and advanced features, the SMC CDM2BZ20-50Z is designed to meet the rigorous demands of modern manufacturing and engineering environments. Its compatibility with various mounting options and ease of integration make it a versatile solution for enhancing productivity and performance in pneumatic systems.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Type:
- Pneumatic
- Mounting Style:
- Boss-cut Basic Style
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 50 mm
- Suffix For Cylinder:
- Rubber Cushion,Rod End Male Thread,Without Rod Boot
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Rubber Cushion,Rod End Male Thread,Without Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
