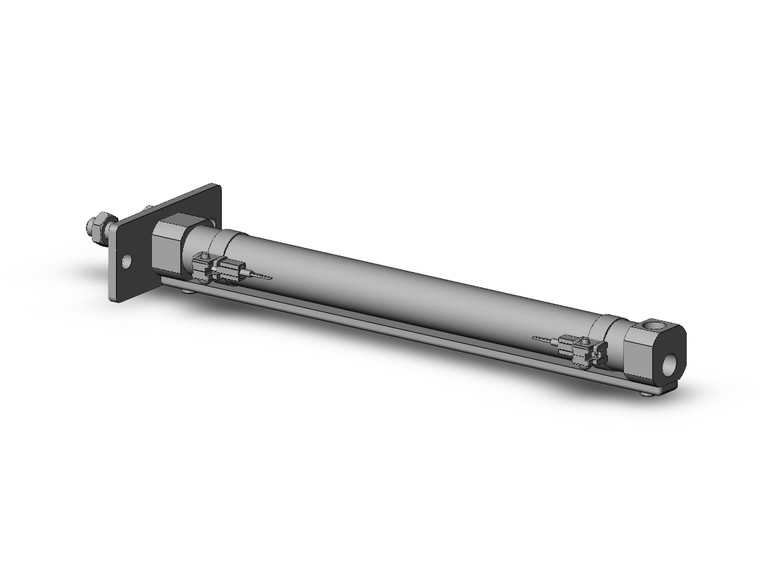

SMC CDM2F20P-200-M9NW-C Cylinder, Air

SMC CDM2F20P-200-M9NW-C CM2 P Series Air Cylinder

SMC
SKU:
CDM2F20P-200-M9NW-C
$151.80
Condition:
New
Current Stock:
Description

CM2 P Series Air Cylinder

  • Compact, lightweight tubing resistant against external impacts is used;
  • Achieves 1.5 times longer service life than that of the existing CM series;
  • With auto switch (Series CDM2: CDM2, CDM2W, CDM2K, CDM2KW,;?CDM2R, CDM2RK, CDM2Q, CDM2 P, CDBM2);;?Production of the series CM2 will be discontinued in October 2013;? (Except Non-rotating rod type/Single acting: CM2K, Centralized piping: ;?CM2 P, With end lock: CBM2);?Please select the series CM2-Z
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Side Flange Style
    Bore Size:
    Bore Size 20 mm
    Port Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 200 mm
    Rod Boot:
    None
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Auto Switch Mounting Bracket:
    Auto Switch Mounting Bracket
    Made To Order:
    Standard
