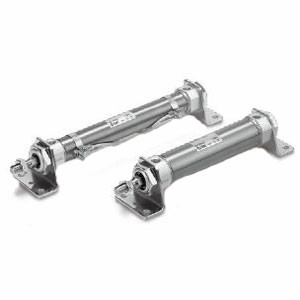

SMC CDM2KB20-150Z CM2K-Z Series Air Cylinder
SMC
$50.05
The SMC CDM2KB20-150Z CM2K-Z Series Air Cylinder is engineered for precision and reliability in demanding industrial applications. This pneumatic actuator features a female rod end as standard, facilitating seamless integration into existing systems. The design allows for easy fine adjustment of the auto switch position, ensuring optimal performance and adaptability to various operational requirements.
Engineered with versatility in mind, the CM2K-Z Series offers single clevis and trunnion pivot brackets, enhancing its mounting flexibility. For streamlined procurement and installation, part numbers with rod end bracket and/or pivot bracket are available, eliminating the need for separate bracket orders.
This air cylinder is part of the comprehensive CDM2-Z series, which includes models such as CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, and CDM2RK, all equipped with an auto switch for enhanced automation capabilities. The robust construction and precise engineering of the SMC CDM2KB20-150Z make it an ideal choice for engineers and manufacturing professionals seeking reliable and efficient pneumatic solutions.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic (Double-side Bossed)
- Bore Size:
- Bore Size 20 mm
- Cylinder Stroke:
- Standard Stroke 150 mm
- Suffix For Cylinder:
- Rubber Cushion,Rod End Male Thread,Without Rod Boot
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Rubber Cushion,Rod End Male Thread,Without Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
