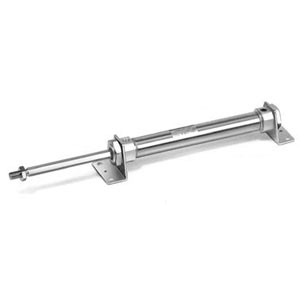

SMC CDM2KBZ25-75SZ-H7A2Z CM2K-Z Series Air Cylinder

SMC CDM2KBZ25-75SZ-H7A2Z CM2K-Z Series Air Cylinder

SMC
SKU:
CDM2KBZ25-75SZ-H7A2Z
$168.65
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CM2K-Z Series Air Cylinder

  • Female rod end available as standard;
  • Easy fine adjustment of auto switch position;
  • Single clevis and trunnion pivot brackets are available;
  • Part numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately);
  • With auto switch (Series CDM2-Z: CDM2 CDM2W CDM2K CDM2KW CDM2R CDM2RK)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Boss-cut Basic Style
    Bore Size:
    Bore Size 25 mm
    Cylinder Stroke:
    Standard Stroke 75 mm
    Action:
    Single Acting, Spring Return
    Rod And Thread:
    Male Rod End
    Pivot Bracket:
    None
    Rod End Bracket:
    None
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
