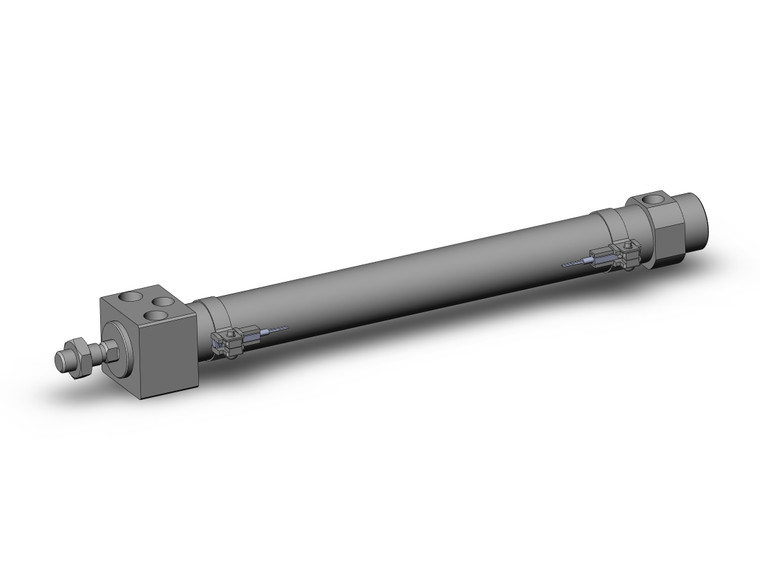

SMC CDM2RA25-200Z-M9PSAPC CM2R-Z Series Air Cylinder
SKU:
CDM2RA25-200Z-M9PSAPC
UPC:
MPN:
CDM2RA25-200Z-M9PSAPC
Condition:
New
With Auto Switch(Built-in Magnet):
With Auto Switch
Type:
Pneumatic
Mounting Style:
Bottom Mounting Type
Bore Size:
Bore Size 25 mm
Cylinder Stroke:
Standard Stroke 200 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Cushion:
Rubber Bumper
Rod And Thread:
Rod End Male Thread
Rod End Bracket:
None
Auto Switch:
Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
CM2R-Z Series Air CylinderFemale rod end available as standard;Easy fine adjustment of auto switch position;Single clevis and trunnion pivot brackets are available;Part numbers with rod end bracket...
