SMC

SMC CDM2XL20TN-100Z-M9NM CM2X-Z Series Low Speed Cylinder Double Acting,Single Rod

(No reviews yet) Write a Review
SKU:
CDM2XL20TN-100Z-M9NM
MPN:
CDM2XL20TN-100Z-M9NM
Condition:
New
With Auto Switch(Built-in Magnet):
With Auto Switch
Mounting Style:
Axial Foot
Bore Size:
Bore Size 20 mm
Port Thread Type:
NPT
Cylinder Stroke:
Standard Stroke 100 mm
Rod And Thread:
Rod End Male Thread
Pivot Bracket:
None
Rod End Bracket:
None
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard

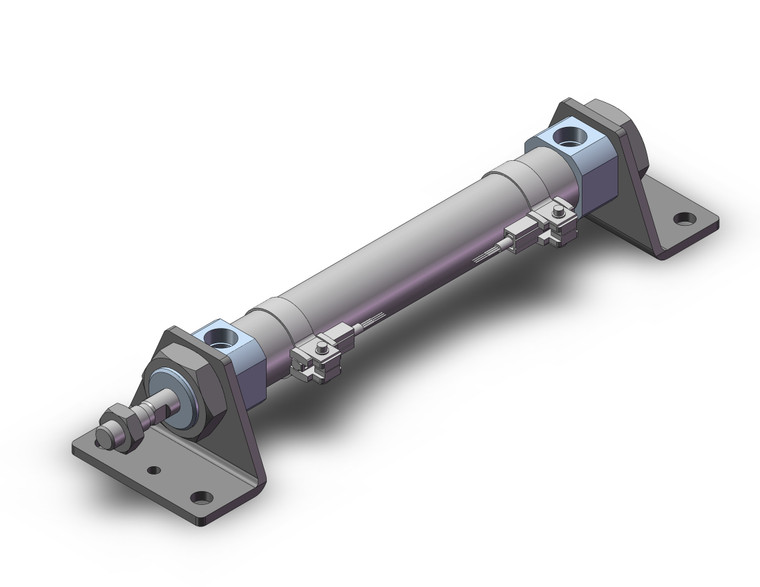

  • SMC CDM2XL20TN-100Z-M9NM round body cylinder cylinder, air
  • SMC CDM2XL20TN-100Z-M9NM CM2X-Z Series Low Speed Cylinder Double Acting,Single Rod
$155.20

Description

CM2X-Z Series Low Speed Cylinder Double Acting,Single Rod

  • Reducing adhesion/quick extension;
  • Smooth operation possible even at 0.5 mm/s (1 mm/s for 16 or smaller);
  • Minimum operating pressure is reduced in half. (Compared to previous version);
  • Improved functions (New structure equivalent to the standard models);
  • Interchangeable with the standard models;
  • With auto switch(Series CDJ2X-Z CDJ2X-Z, Series CDM2X-Z CDM2X, ; Series CDQSX CDQSX, Series CDQ2X CDQ2X, Series CDUX CDUX)
    • View AllClose
