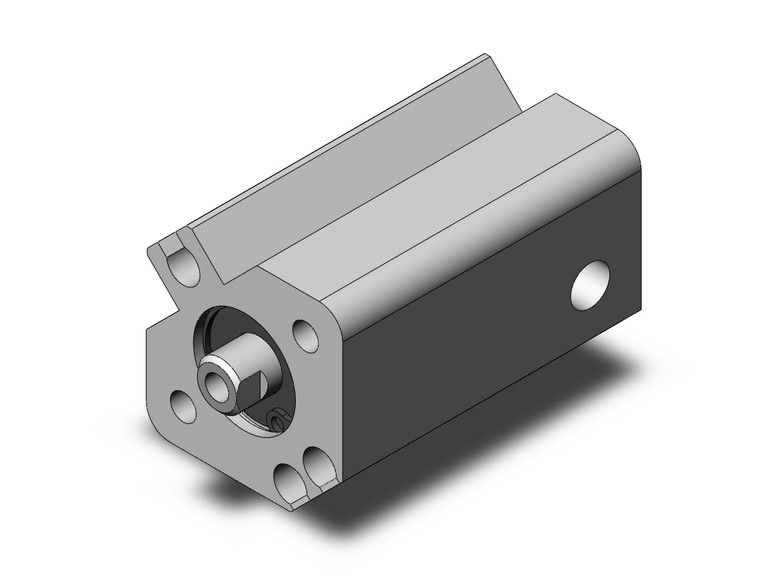

SMC CDQ2A12-10SZ CQ2 Z Series Compact Cylinder
SMC
$23.70
The SMC CDQ2A12-10SZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, featuring a newly expanded size range that includes 4, 6, and 10, extending the lineup from 4 to 200. Designed with a compact body, this cylinder is ideal for applications where space optimization is critical.
Engineers will appreciate the innovative design that allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25, ensuring seamless integration into existing systems without any protrusion. The lightweight construction, reduced by 5 to 13% compared to the previous CQ2 series, enhances performance without compromising durability.
The CDQ2A12-10SZ model includes added pivot brackets for double clevis and compact type foot brackets, providing versatile mounting options. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders, thus streamlining the procurement process.
This cylinder is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability for various industrial applications. Optimize your pneumatic systems with the SMC CDQ2A12-10SZ, where compact design meets robust functionality.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Bore Size:
- Bore Size 12 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 10 mm
- Action:
- Single Acting, Spring Return
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 50 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
