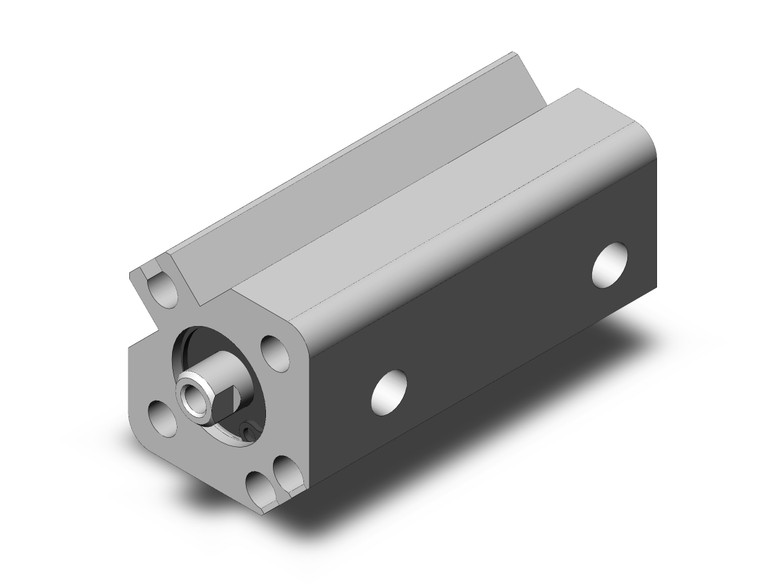

SMC CDQ2A12-20DZ CQ2 Z Series Compact Cylinder
SMC
$27.70
The SMC CDQ2A12-20DZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained applications. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from 4 to 200, with new additions in sizes 4, 6, and 10, catering to diverse industrial needs.
Designed with a focus on space optimization, the CDQ2A12-20DZ allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25. This feature ensures seamless integration into complex systems without the projection of auto switches, maintaining a streamlined profile.
The cylinder's lightweight construction, reduced by 5 to 13% compared to the previous CQ2 series, enhances operational efficiency and ease of installation. Engineers will appreciate the added pivot brackets for double clevis and compact type foot brackets, which simplify the mounting process. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders.
Compatible with a variety of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, this cylinder offers versatile application possibilities. The SMC CDQ2A12-20DZ is the ideal choice for engineers seeking a reliable, space-saving solution for pneumatic actuation in manufacturing and automation systems.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 12 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 20 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
