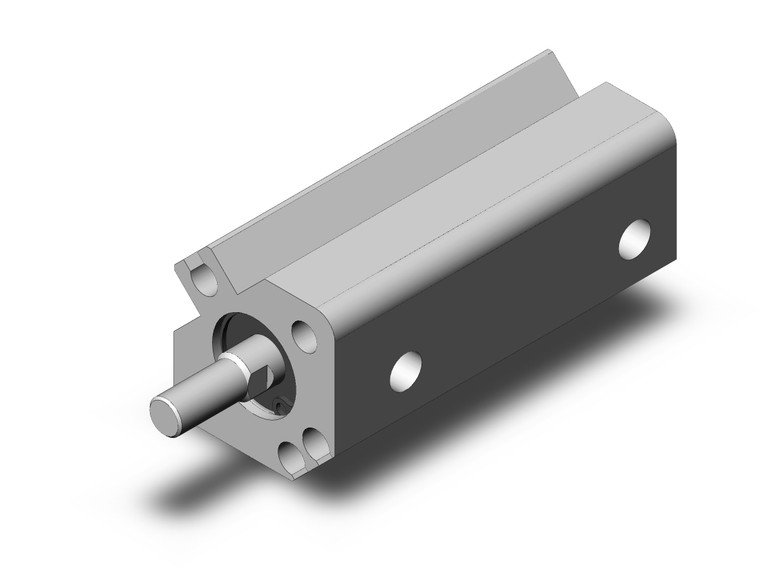

SMC CDQ2A12-25DMZ CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2A12-25DMZ
Availability:
Factory stock: 23
$29.15
Condition:
New
Current Stock:
The SMC CDQ2A12-25DMZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. With a size range now extending from 4 to 200, this cylinder is ideal for applications requiring minimal space without compromising performance. Key features include the ability to mount small auto switches on two surfaces for sizes 12 to 25, ensuring seamless integration into automated systems. The design eliminates any projection of the auto switch, maintaining a sleek profile. The cylinder's weight has been reduced by 5 to 13% compared to previous CQ2 series models, contributing to overall system efficiency and ease of handling. The CDQ2A12-25DMZ model also offers added pivot brackets for double clevis and compact type foot brackets, enhancing its versatility in various mounting configurations. Engineers will appreciate the convenience of part numbers that include rod end brackets and/or mounting bolts, eliminating the need for separate bracket orders. This cylinder is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility in system design and operation. The SMC CDQ2A12-25DMZ is the optimal choice for professionals seeking a reliable, space-saving solution in pneumatic applications.
Built-in Magnet:
Built-in Magnet
Mounting Style:
Both Ends Tapped Style
Type:
Pneumatic
Bore Size:
Bore Size 12 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 25 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
Rod End Male Thread
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
Without Auto Switch
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
