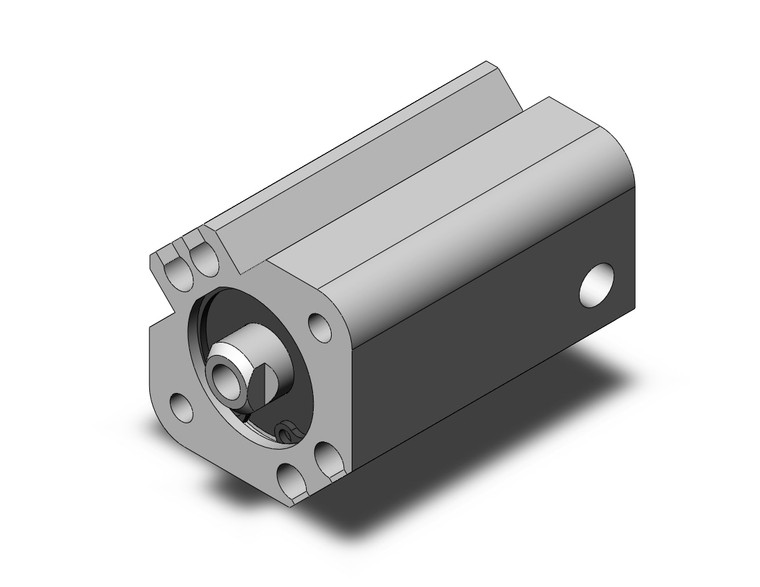

SMC CDQ2A16-10SZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A16-10SZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in sizes ranging from 4 to 200, with the recent addition of sizes 4, 6, and 10, offering a versatile solution for various industrial applications. Designed with a focus on space optimization, the CQ2 Z Series features a compact body that allows for seamless integration into tight spaces without compromising performance. The innovative design includes the capability to mount small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring flexibility in installation and operation. The absence of auto switch projection further enhances the cylinder's streamlined profile. Engineered for reduced weight, the CDQ2A16-10SZ is 5 to 13% lighter than previous models in the CQ2 series, contributing to improved system efficiency and reduced load on supporting structures. The inclusion of pivot brackets for double clevis and compact type foot brackets simplifies installation, while part numbers with rod end brackets and/or mounting bolts eliminate the need for separate bracket orders, streamlining procurement and assembly processes. This model is compatible with a range of auto switches, including Series CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing enhanced control and automation capabilities. The SMC CDQ2A16-10SZ is an ideal choice for engineers and manufacturing professionals seeking a reliable, space-efficient pneumatic solution that delivers superior performance and adaptability in demanding industrial environments.
