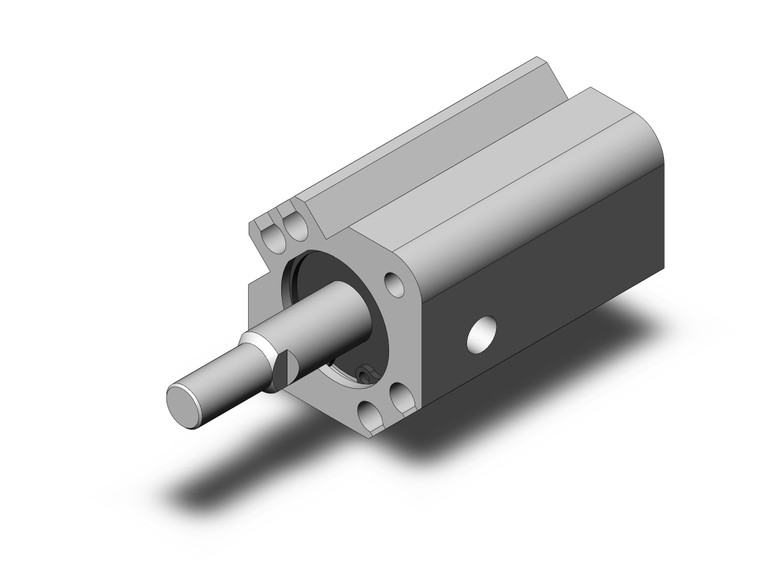

SMC CDQ2A16-10TMZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A16-10TMZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained applications. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a newly expanded size range, including 4, 6, and 10, extending up to 200, to accommodate diverse industrial needs. Designed with a space-saving profile, the CDQ2A16-10TMZ allows for the integration of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring seamless automation without any protrusion. This feature is particularly beneficial for applications requiring streamlined operations and minimal spatial interference. The cylinder's lightweight construction, reduced by 5 to 13% compared to the previous CQ2 series, enhances its operational efficiency and ease of installation. Engineers will appreciate the added pivot brackets for double clevis and compact type foot brackets, which simplify mounting and increase versatility. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders. The inclusion of an auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2) further enhances the cylinder's adaptability to automated systems. Optimize your manufacturing processes with the SMC CDQ2A16-10TMZ, a compact cylinder that combines innovative design with robust performance, tailored for the demands of modern engineering applications.
