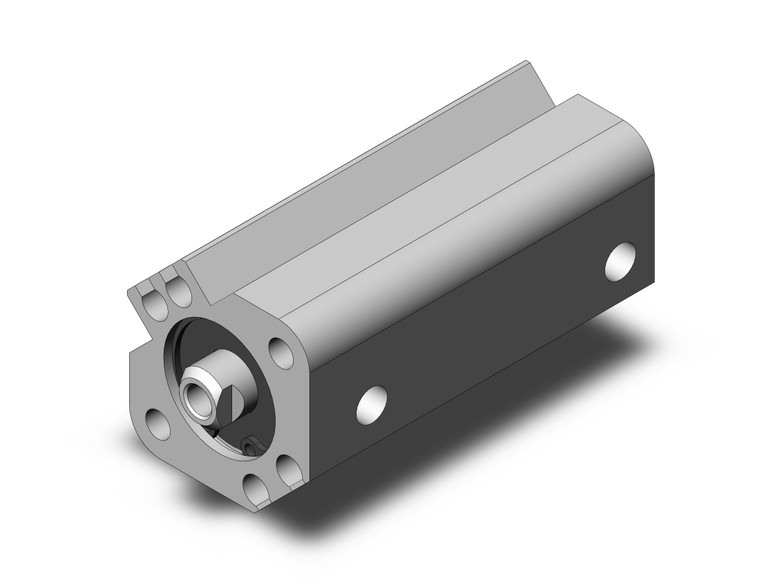

SMC CDQ2A16-25DZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A16-25DZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained applications. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from 4 to 200, with new additions in sizes 4, 6, and 10, catering to diverse industrial needs. Designed with a focus on space optimization, the CQ2 Z Series features a compact body that allows for seamless integration into tight spaces without compromising performance. The innovative design includes the capability to mount small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25, ensuring flexibility in installation and operation. The absence of auto switch projections further enhances its streamlined profile. Engineered for reduced weight, the cylinder is 5 to 13% lighter than its predecessors in the CQ2 series, contributing to improved system efficiency and reduced load on supporting structures. The inclusion of pivot brackets for double clevis and compact type foot brackets simplifies installation, while part numbers with rod end brackets and/or mounting bolts eliminate the need for separate bracket orders, streamlining procurement and assembly processes. The SMC CDQ2A16-25DZ is compatible with a range of auto switches, including Series CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering versatility and adaptability to various automation systems. This compact cylinder is an ideal choice for engineers and manufacturing professionals seeking reliable, space-efficient pneumatic solutions with enhanced operational capabilities.
