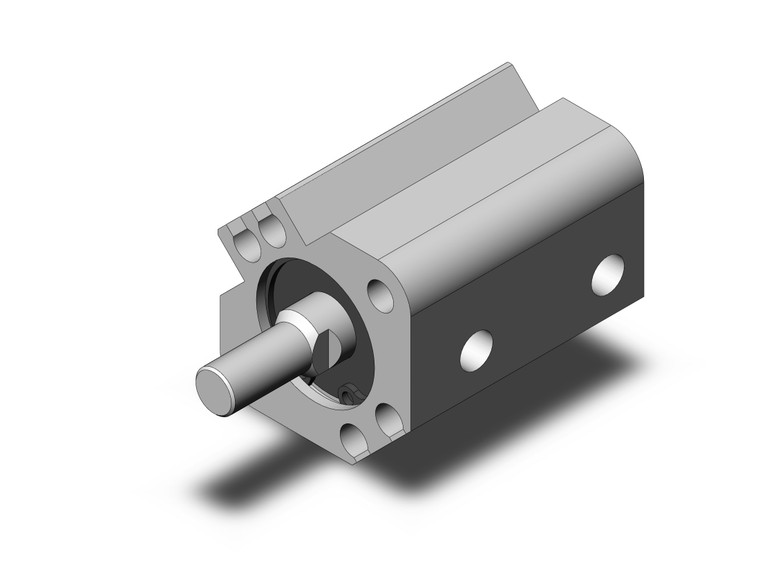

SMC CDQ2A16-5DCMZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A16-5DCMZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from 4 to 200, with new additions in sizes 4, 6, and 10, catering to diverse application needs. Designed with a focus on space optimization, the CQ2 Z Series allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25. This feature ensures seamless integration into complex systems without the projection of auto switches, maintaining a streamlined profile. The cylinder's lightweight construction, reduced by 5 to 13% compared to the existing CQ2 series, enhances operational efficiency and ease of installation. Engineers will appreciate the added pivot brackets for double clevis and compact type foot brackets, which simplify mounting and increase versatility. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders. Compatible with a variety of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, this cylinder offers flexibility and adaptability for automated systems. The SMC CDQ2A16-5DCMZ is the ideal choice for professionals seeking a reliable, space-saving solution that does not compromise on performance or functionality.
