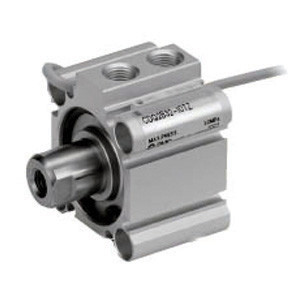

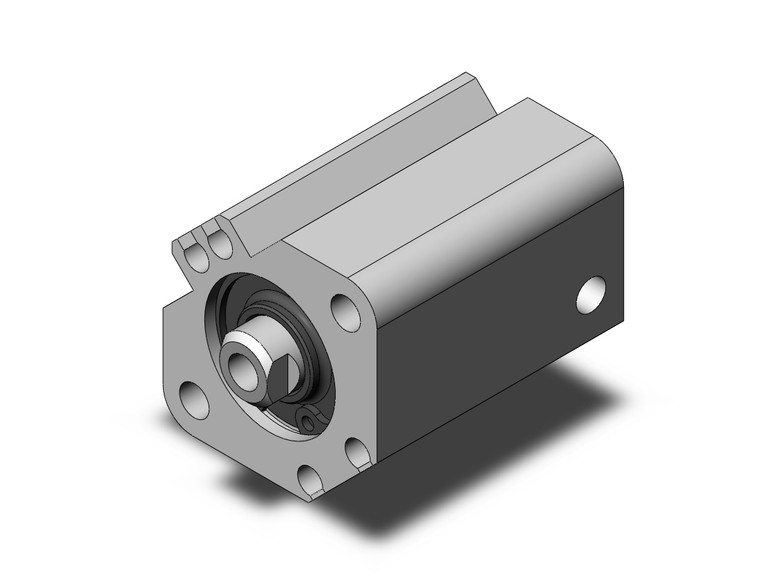

SMC CDQ2A20-10SZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A20-10SZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from 4 to 200, with new additions in sizes 4, 6, and 10, catering to diverse application needs. Designed with a space-saving profile, the CDQ2A20-10SZ allows for the integration of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25, ensuring seamless automation without any protrusion. This feature is particularly beneficial for applications requiring streamlined operations and minimal spatial interference. The cylinder's lightweight construction, reduced by 5 to 13% compared to the previous CQ2 series, enhances its operational efficiency and ease of installation. Engineers will appreciate the added pivot brackets for double clevis and compact type foot brackets, which simplify mounting and increase versatility in application. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders. The CDQ2A20-10SZ is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability in automated systems. Optimize your pneumatic systems with the SMC CDQ2A20-10SZ, a compact cylinder that combines innovative design with robust performance, ideal for engineers and manufacturing professionals seeking reliable and efficient solutions.
