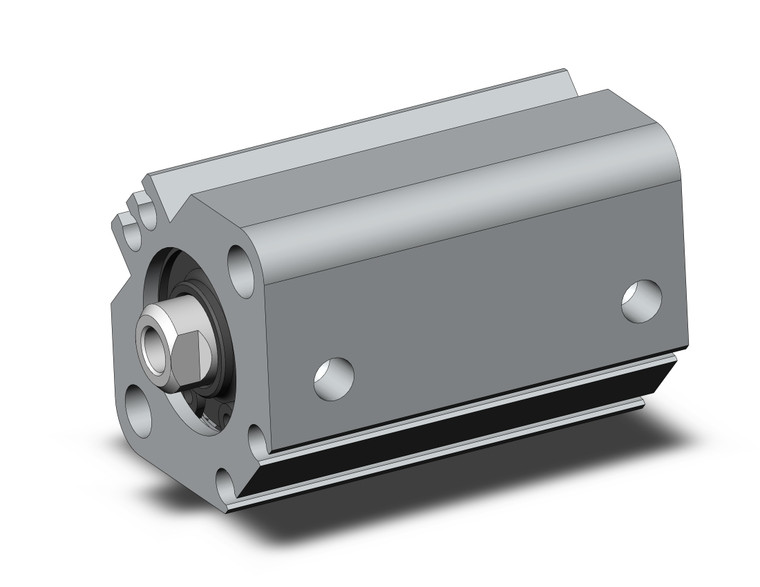

SMC CDQ2A20-20DCZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A20-20DCZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from 4 to 200, with new additions in sizes 4, 6, and 10, catering to diverse application needs. Designed with a focus on space optimization, the CQ2 Z Series allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25. This feature ensures seamless integration into complex systems without the need for additional space. The absence of auto switch projections further enhances its compact profile, making it ideal for applications where space is at a premium. The cylinder's lightweight construction, reduced by 5 to 13% compared to the existing CQ2 series, contributes to improved system efficiency and ease of installation. Engineers will appreciate the added pivot brackets for double clevis and compact type foot brackets, which simplify mounting and enhance versatility. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders and streamlining the procurement process. Compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, this cylinder offers flexibility and adaptability for various industrial applications. The SMC CDQ2A20-20DCZ is the ideal choice for engineers seeking a reliable, space-saving solution that does not compromise on performance or functionality.
